DPH Series

DPH-SERIES

The adjustable pedestal for public spaces

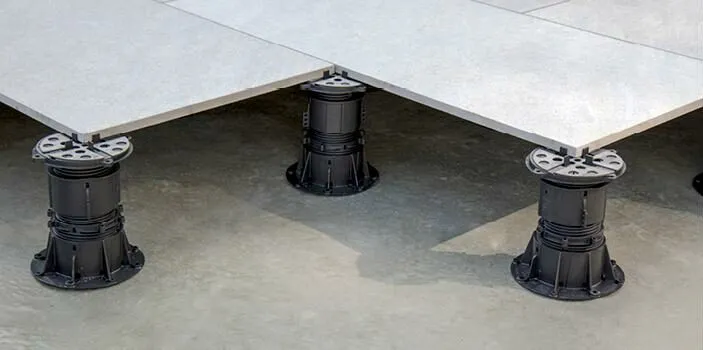

The strong and hard-wearing DPH pedestal is the oldest member of the Buzon® pedestal family. Adjustable from 17 to 1070 mm, it is the ideal support for creating public spaces and prestige open spaces.

The DPH pedestal maintains its strength and stability even under heavy and frequent use. Thanks to its reinforced structure, this strong polypropylene pedestal is particularly recommended for use with heavier floor coverings such as large-format concrete slabs.

DPH PEDESTALS

ACCESSORIES IN THE PB RANGE

GRABO

U-TILES

U-BRS-STOP

U-BRS-END

U-BRS-CONNECTOR

DPH-END

THE ADVANTAGES OF DPH SCREWABLE DECKING SUPPORTS

1/13

Adjustable Pedestals from 12 to 955 mm

2/13

Quick and easy installation

3/13

High stability thanks to a large pedestal top

4/13

A system supporting heavy loads

5/13

Better thermal and acoustic insulation

6/13

Easy and precise slope correction up to 5%

7/13

Easy access to the waterproofing membrane or substructure

8/13

Concealing of technical equipment

9/13

Respect of the waterproofing membrane

10/13

A broad range of accessories for the terrace finish

11/13

Sustainable solution

12/13

Sustainable solution

13/13

Presence of open joints avoiding all risks of cracking as compared to closed joints. Easier water evacuation

HOW MANY SUPPORTS DO YOU NEED?

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque mauris enim, congue nec ullamcorper sed, eleifend a dui. Phasellus suscipit, turpis nec dignissim iaculis, sapien libero vehicula lorem, quis gravida sapien justo et lorem.

AVERAGE NUMBER OF SUPPORTS REQUIRED PER M2 OF DECKING:*

Dimension and surface area of the terrace	20m²	50m²	100m²	1000m²
Length	5	10	10	50
Width	4	5	10	20

Paver format	Pedestals/m²	Pedestals/m²	Pedestals/m²	Pedestals/m²
40 x 40 cm	7.70	7.28	6.76	6.43
50 x50 cm	4.95	4.62	4.41	4.14
60 x 60 cm	4.00	3.60	3.24	2.94
75 x75 cm	4.90	4.36	4.21	3.71
80 x 80 cm	4.15	4.06	3.65	3.24
90 x 90 cm	6.00	5.76	5.76	5.15
100 x 100	4.95	4.62	4.41	4.14
120 x 30 cm	7.50	6.48	6.30	5.78
120 x 60 cm	4.00	3.60	3.24	2.98
90 x 45	6.00	5.76	5.76	5.15

*Information is provided as a guideline only. The number of pedestals used varies based on the specifics of each project. Buzon® cannot be held responsible for variations in quantity.

DPH-SERIES

DPH PEDESTALS

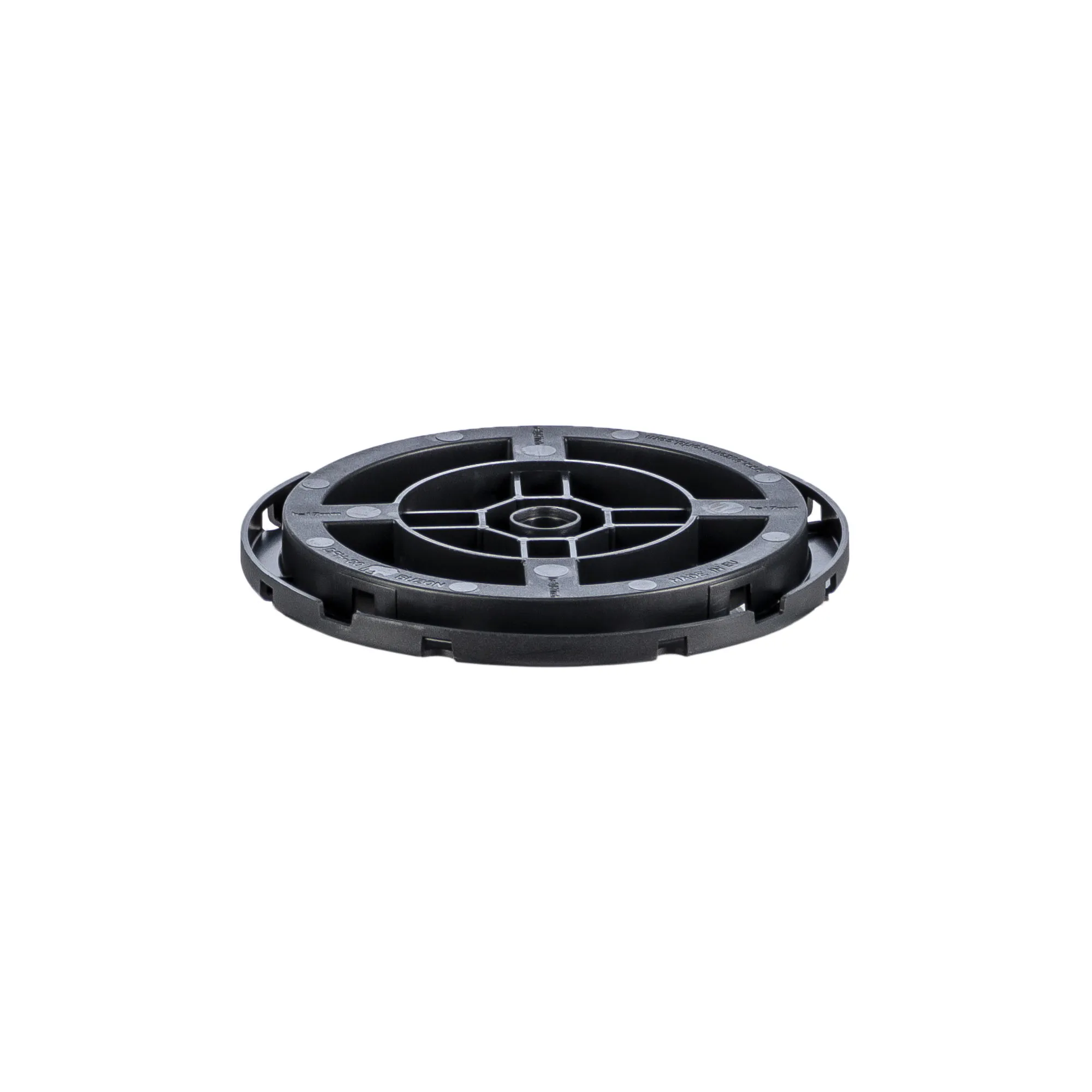

PEDESTAL DPH-F17

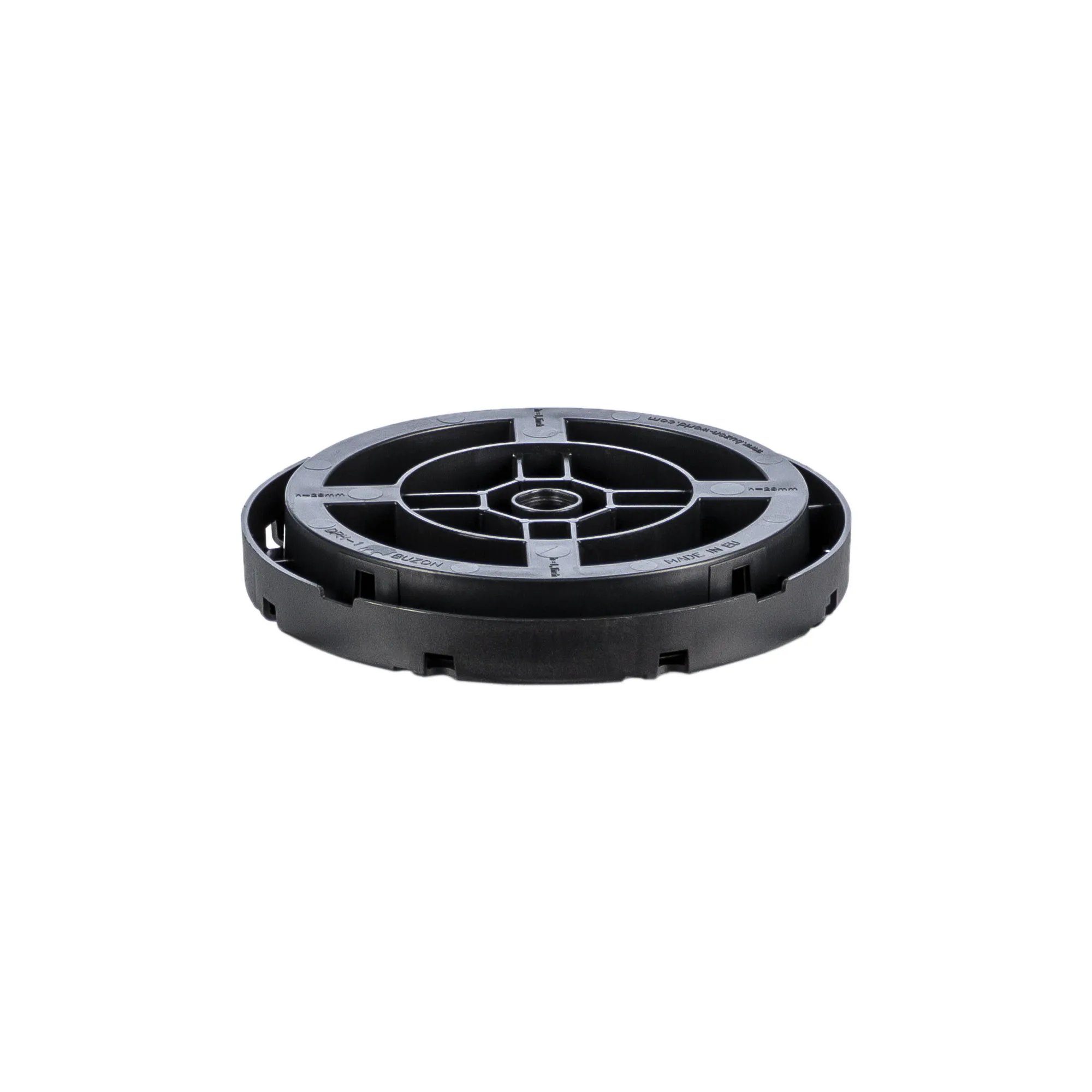

PEDESTAL DPH-F28

PEDESTAL DPH-1

PEDESTAL DPH-2

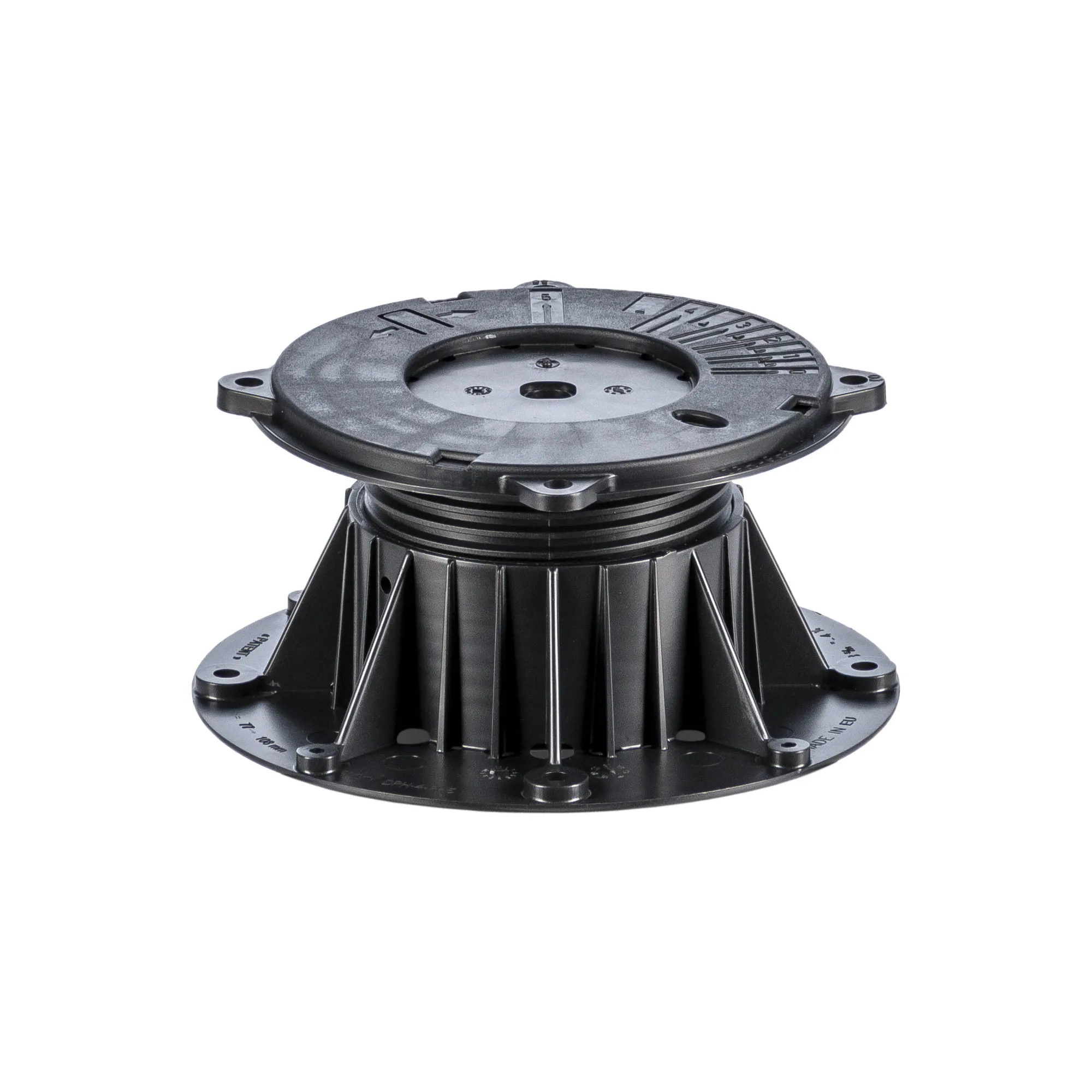

PEDESTAL DPH-4-PH5

PEDESTAL DPH-02

PEDESTAL DPH-3

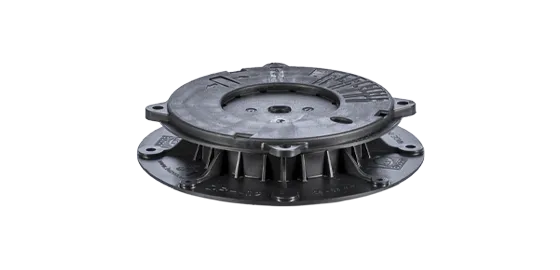

PEDESTAL DPH-02-PH5

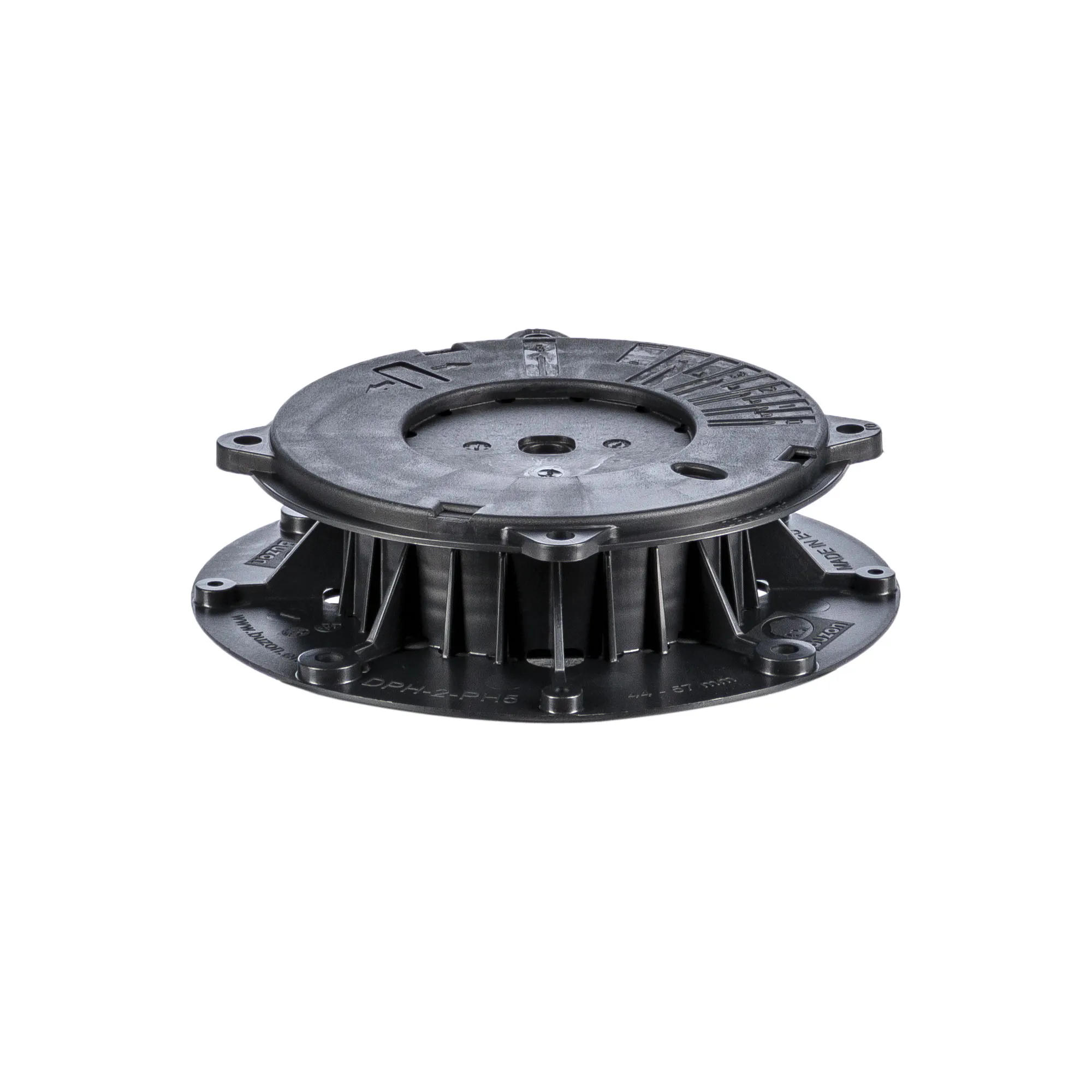

PEDESTAL DPH-2-PH5

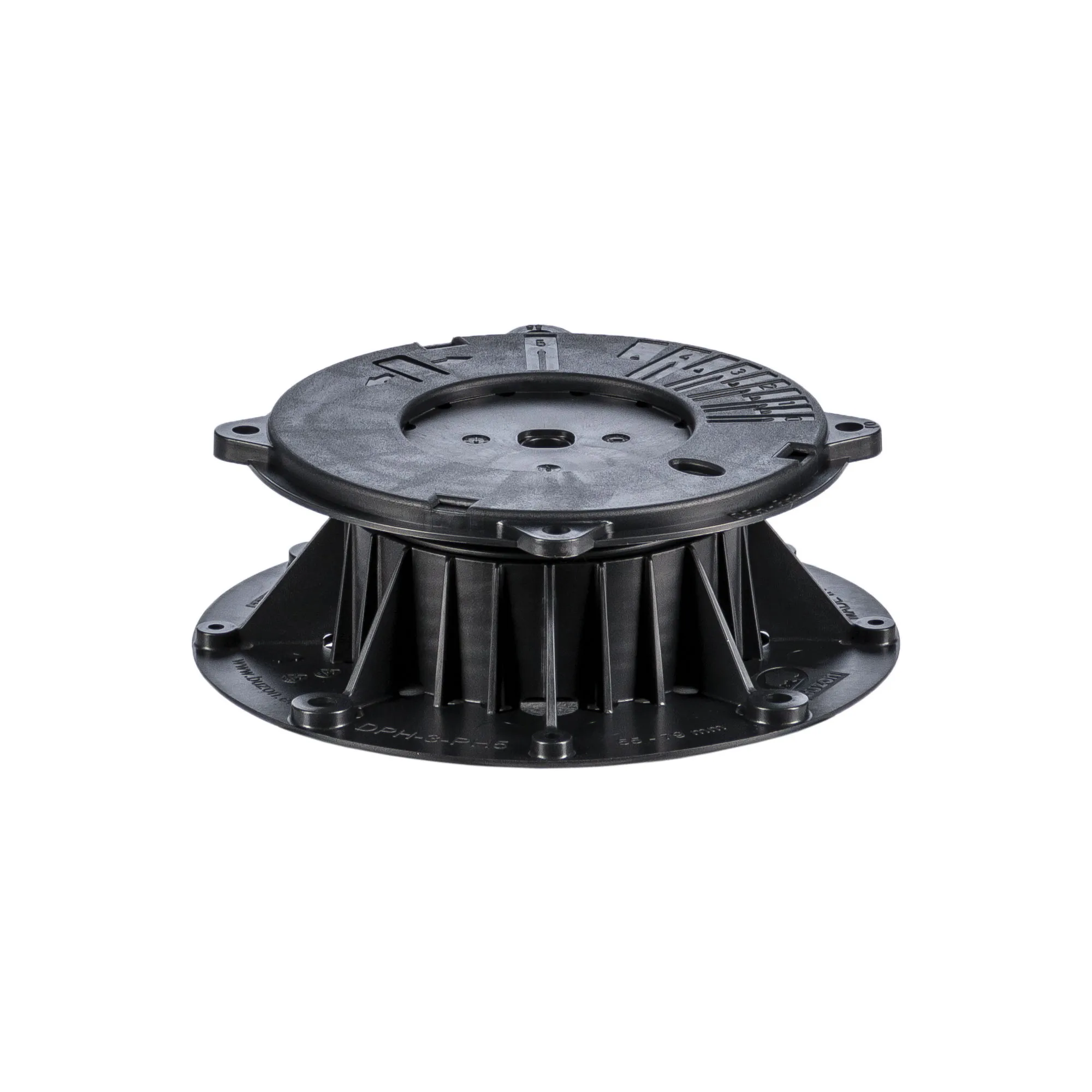

PEDESTAL DPH-3-PH5

ACCESSORIES IN THE PB RANGE

GRABO

U-TILES

U-BRS-STOP

U-BRS-END

U-BRS-CONNECTOR

DPH-END

THE ADVANTAGES OF DPH SCREWABLE DECKING SUPPORTS

HOW MANY SUPPORTS DO YOU NEED?

AVERAGE NUMBER OF SUPPORTS REQUIRED PER M2 OF DECKING:*

*Information is provided as a guideline only. The number of pedestals used varies based on the specifics of each project. Buzon® cannot be held responsible for variations in quantity.
